Reed Test Pumps & Groovers

Test Pumps & Goovers

DPHTP500 Drill Powered Hydrostatic Test Pump

Features:

Lightweight since the power source is separate.
Works on commercial and residential water systems.
Pumps are self-priming and work with pressurized or non-pressurized water supply.
Storage case keeps the pump clean and organized.
No drop cord needed when used with a cordless drill.
Requires 18V cordless or ½” corded drill with 1500 RPM (not included).

Use of a cordless drill for power keeps weight off this hydrostatic test pump, making it lightweight and portable. Included high pressure hose allows for filling the system and includes a quick connect feature. This 15 foot hose allows the pump to be set in a convenient location instead of being held next to the worksite. DPHTP500 uses a 1/2” chuck on an electric or cordless drill 18V or higher, capable of 1500 RPM (drill not included). These pumps are designed for pressure testing both residentialand commercial water systems.

EHTP500C Electirc Hydrostatis Test Pump

Features:

Smooth running, quiet 3/4 HP motor available in 110V or 220V.
Includes a 15-foot (4.6m) high pressure hose for filling the system.
Pumps are self-priming and work with pressurized or non-pressurized water supply.
Available with or without (shown above) protective cage.

Electric Hydrostatic Test Pumps are designed for pressure testing water systems such as water meters, plumbing lines, pressure vessels, solar systems and sprinkler systems, in both residential and commercial buildings. The output pressure is easily adjusted by turning a knob and watching the attached gauge. A built-in bypass allows for automatic water recirculation once the set pressure is reached. The hose-to-pump connection features a quick disconnect with built-in check valve, which allows for convenient setup and portability. Durable pump has stainless steel piston and brass cylinder for long pump life. Replacement seal kits available to sustain pump efficiency.

RGCOMBO2 Combo Roll Groover

Features:

Perform both power and manual roll grooves with ease.
May be used manually on pipe “in air” or on a pipe stand.
Slide block and groove roll angle ensures tool tracks around the pipe accurately while making a groove.
Adapts to power grooving with REED 5301PD and other comparable power drives.
Requires 10.25 inches of clearance for in air grooving.
Recessed grease fittings are protected against damage.
Built to last with reinforced components at key points yield a longer useful tool life

Combo Roll Groovers are 2-in-1 service tools that yield cost savings of time and money by allowing a complete change in minutes from power machine operation to manual work or back. They are operated either manually or under power. RGCOMBO2 forms standard rolled grooves in steel, stainless steel, and aluminum pipe from 1 1/4” to 6”. The formed grooves comply with the specifications required for mechanical coupling systems. The only adjustment required is for the depth of the groove.

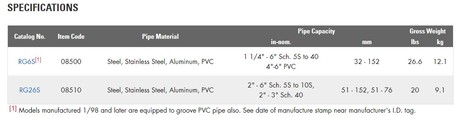

RG6S Portable Roll Groover

Features

Finger-adjust depth screw and gauge on RG6S for quick, accurate and repeatable groove depths.
Angled rollers on RG26S keep the groover on the pipe and in-line.
RG26S ratchet wrench is easy to use in tight places.

REED portable roll groovers are compact, durable tools for use at installation sites.

RG6S roll groover is designed to be powered by REED 5301PD power drive. RG6S has heavy-duty, sealed bearings and a steel body to withstand the punishment of severe grooving applications, including use on Schedule 40 pipe. Finger-adjust depth screw and gauge provide quick adjustment and accurate, repeatable groove depths. No bulky adjusting wrenches required.

RG26 roll groover manually grooves in-place pipe and pipe too short for powered groovers. It is easily carried and positioned with a convenient handle. Screw knob on top of unit makes for easy depth adjustments. Included ratcheting handle is used for feeding and turning.
