VALUE PROTECTION

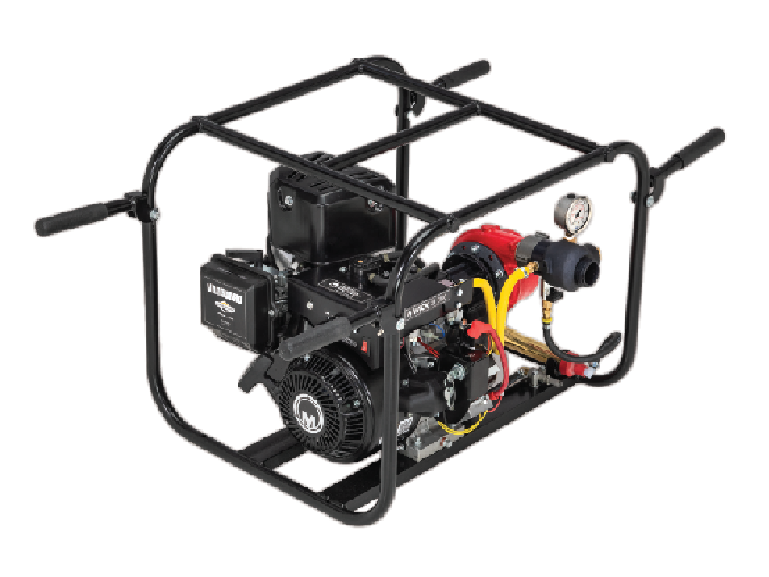

3 STAGE HIGH PRESSURE FIRE PUMP
This pump is especially designed with value protection in mind offering such standard features as;
• Low pressure shut-off to protect the pump on loss of prime
• Remote fuel tank connection for extended run time
• Hand primer, poppet check valve and pressure gauge
• Electric start motor (battery not included)
Other features of this pump that make it the best performance 3 stage fire pump in it’s class include the following;
• Exceeds US Federal pump performance requirements for Type 7 apparatus
• Most fuel efficient engine meeting type 7 requirements
• Powered by a 4 stroke, air cooled Briggs & Stratton Vanguard™ 10 HP overhead valve engine with over-speed protection
• Overhead valve design allows for cooler and cleaner runs, delivering more power, longer engine life, improved fuel economy and lower emissions
• Racing designed connecting rod and head gasket for increased torque and improved oil fl ow through the engine, maximizing internal component protection
• Forged crankshaft incorporating heat treated ball bearings to minimize friction and heat build-up
• Acoustically designed muffl er for tonal quality and low noise level
• Can work in tandem at more than 400psi (28 Bar)
• Three stage foam compatible pump end
• Pump end and speed increaser can be rotated to multiple positions
• Anodized aluminum impellers and distributors
• Maintenance-free speed increaser
• Standard wraparound frame with folding handles
• 3 year manufacturer’s warranty on the engine
