FIRE DEPT CONNEC - BODY A101 A102 - 1121 1.pdf

A101 6" THREAD

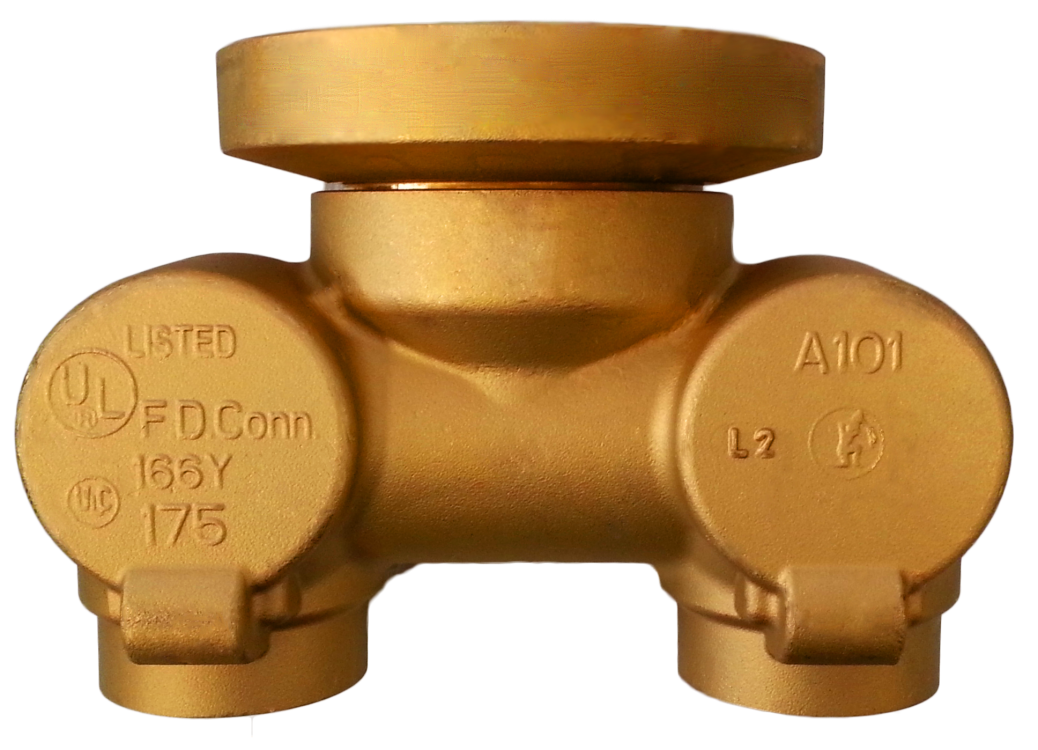

A101 - Straight Concealed Siamese Body

Fire department inlet connection, two female inlet body with female outlet back connections, double back clappers with main features as follows:

- Casted brass

- 6" x 4" brass bushing is supplied

                                                          - 2-1/2” female NPT inlets

                                                          - Minimum inlet capacity 500 GPM

                                                          - UL listed Rated pressure 175 psi - ULC listed Rated pressure 175 psi
