FIRE DEPT CONNEC - BODY A101 A102 - 1121.pdf

A101 4" THREAD

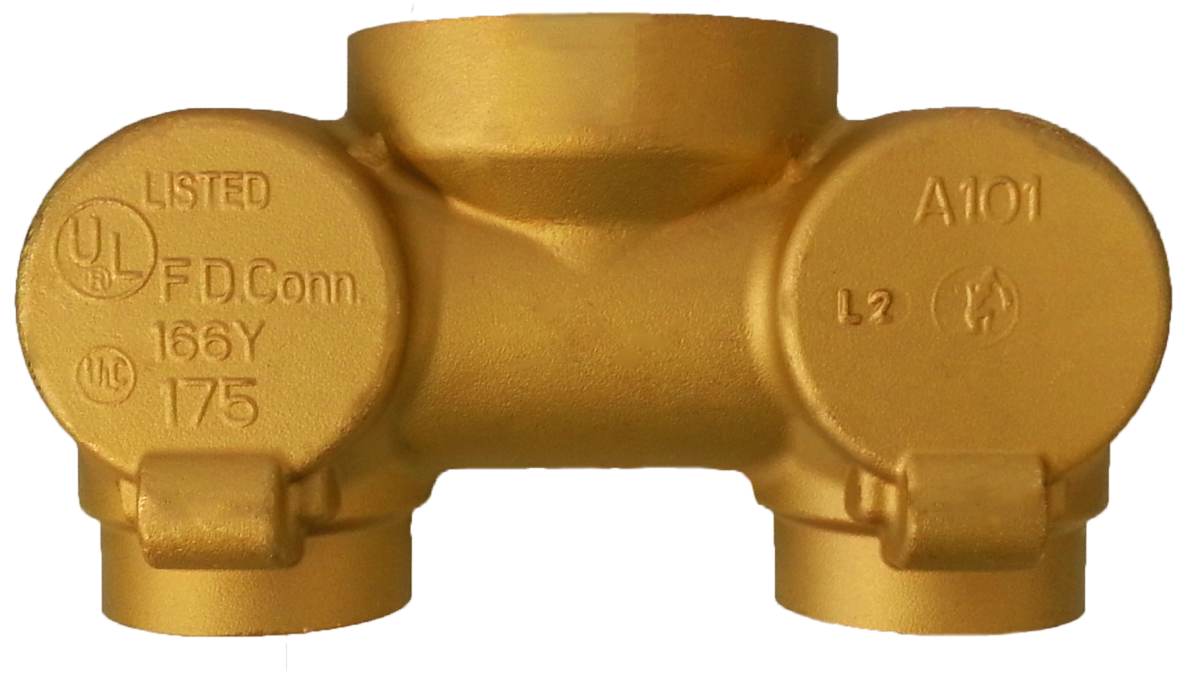

A101 - Straight Concealed Siamese Body

Fire department inlet connection, two female inlet body with female outlet back connections, double back clappers with main features as follows:

- Casted brass

                                                          - 4” female NPT outlet

                                                          - 2-1/2” female NPT inlets

                                                          - Minimum inlet capacity 500 GPM

                                                          - UL listed Rated pressure 175 psi - ULC listed Rated pressure 175 psi
