Fire Dept. Connections Dry Hydrants Strainer & Supports
hydrants 3.gif

Strainer & Supports

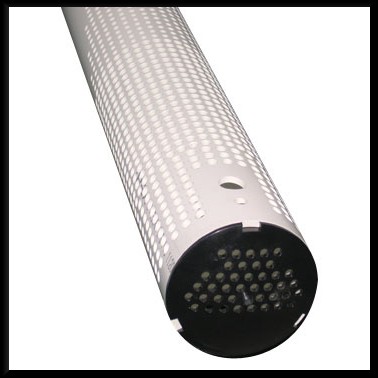

Style 133
Dry Hydrant Underwater Strainer

Available sizes: 6" and 8"; approximately 60" long

  • Strainer made of Schedule 40 PVC pipe to ASTM D1785.
  • 6" - Drilled with 1,140 3/8" holes, each chamfered.
  • 8" - Drilled with 1,840 3/8" holes, each chamfered.
  • Strainer open area approx. 125 sq. in. (6"), 200 sq. in. (8").
  • Both ends machined square.
  • Outboard end has Brass clappered end cap on 6"; PVC on 8".
  • 8" shipped with 8" x 6" reducing



Style 134
Dry Hydrant Underwater Strainer Supports

  • Cradles and supports dry hydrant intake at proper level.
  • All bronze construction resists corrosion indefinitely.
  • Includes two stainless steel locking screws.
  • 1" O.D. pipe or rod is used for support (not furnished).

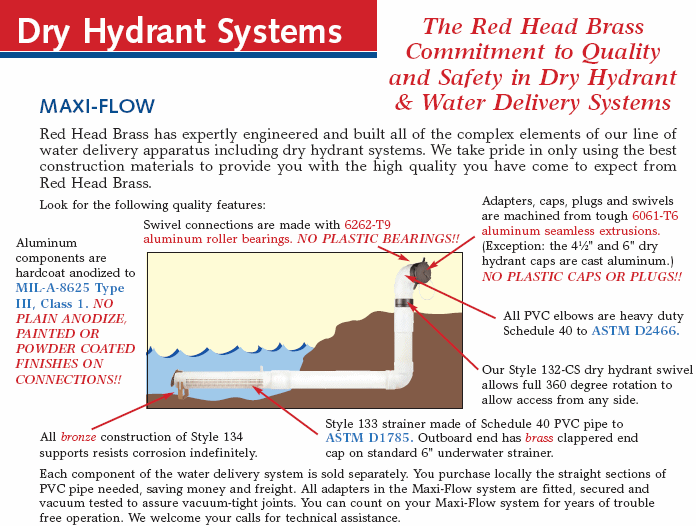

Click on the Product Data Link Below for Overview of Dry Hydrant System

×
