Fire Dept. Connections Components & Parts A101 Flush Body
FIRE DEPT CONNEC - BODY A101 A102 - 1121 4.pdf

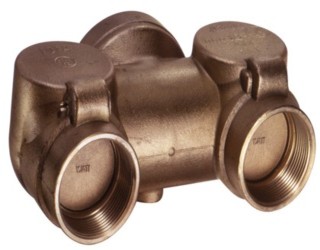

A101 Flush Body

Straight body for flush connections 229, 230 and 232.

Constructed of forged brass with 300 PSI rated pressure.  4" female NPT x (2) female 2 1/2" female NPT connections.  Complete with 2 1/2" drop clappers.

IMPORTANT:

  1. For Model 230 Wall Hydrant and Model 232 Pump Test Connections, the drop clappers most be removed prior to installation.  Clappers can be removed easily with a normal screw driver.  Replace holding pins after removal of clappers.
  2. For Model 229 Inlet Connections, the drop clappers must remain in place. Contact techical service department at (800) 267-8508 for installation assistance.
×
