Medium Security Institutions, Court Houses, Youth Detention Facilities, Police Stations, Mental Health Facilities.
Confirm with local building codes or authority having jurisdiction regarding restrictions on locked fire protection cabinets

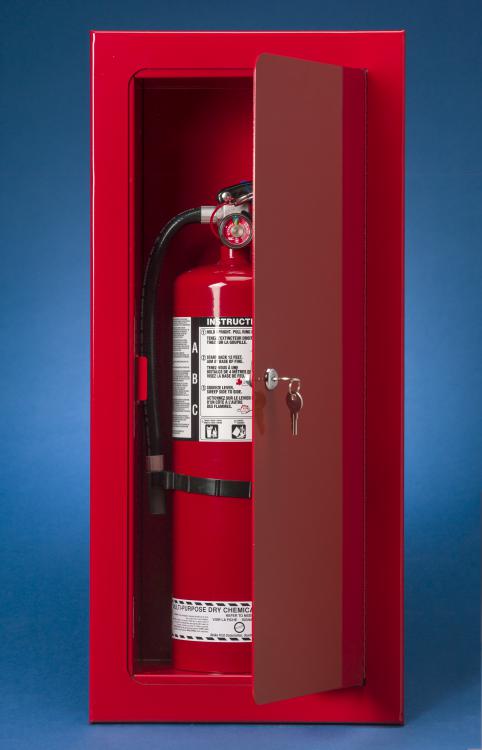

Photo to left shown with baked red enamel paint option. Standard is grey.
Standard Product Specifications:
12 Ga. FULL METAL Painted Adjustable Fronts with 1/2" return trim - Grey
14 Ga. Painted Tubs - White
Hinge: Standard Piano Hinges
Lock: Model 151 Standard Cylinder Lock
OPTIONS: Medium Security Cabinet
Paint Options: Red, White, Yellow, Black
Handle: "D" chrome pull handle
Hinges: Heavy Duty Piano Hinge
Security Hinge Model 850T
Lock: Mortise Deadbolt with Cylinder
Cabinet Identification: Die Cut Decals (Red or White) Fire Extinguisher, Fire Hose, Fire Dept. Valve
| Model | Tub Size | Frame O.D. | Extinguisher Type |
| 102RS-MED | 8" x 17" x 5" | 12" x 21" | 5 lbs Dry Chemical |
| CE-950-3-MED | 9"x 24"x 6" | 13" x 28" | 10 lbs. Dry Chemical |
| CE-950-3-2-MED* | 9"x 24"x 6" | 13" x 28" | 10 lbs. Dry Chemical |
| CE-950-2-MED | 10"x 30"x 8" | 14" x 34" | 10 lbs. CO2 |
