WB-UAD Utility Access Door (Formally the GPS)
This utility door is our most popular and economically priced access panel! Precision fit, radius corners, 1 piece trim, 16 gauge return frame and uniweld construction allows for an aesthetically pleasing appearance and square fit in all wall and ceiling applications. A quarter turn of the screwdriver cam-type latch operates opening and closing.

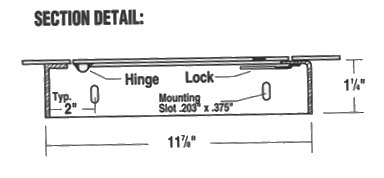

Construction Features
Door & Trim: 16 Ga. steel. Trim being 1 " wide.
Return Frame: 16 Ga. steel having a depth of 1-1/4".
Hinges: One piece hidden pivot rod hinge.
Latches: Flush, steel cam operated with screw-driver. Latches are positioned opposite hinge as well as top and bottom on larger sizes.
Finish: Electrostatically applied baked grey enamel coat over phosphate treated steel. This coating can be used as a finish or as a prime coating.
Options: None available.
| Door Size | Wall Opening | Hinges | Cam Latch | Door | Shipping Wt.)(Lbs) Case |
| 6"x 6" | 6 1/4" x 6 1/4" | 1 | 1 | 1 1/2 | 8 1/2 |
| 8" x 8" | 8 1/4" x 8 1/4" | 1 | 1 | 2 1/2 | 13 1/2 |
| 10" x 10" | 10 1/4" x 10 1/4" | 1 | 1 | 4 | 21 |
| 12"x12" | 12 1/4" x 12 1/4" | 1 | 1 | 5 | 26 |
| 14"x14" | 141/4" x 14 1/4" | 1 | 3 | 6 | 32 |
| 16" x 16" | 16 1/4" x 16 1/4" | 1 | 3 | 7 1/2 | 39 1/2 |
| 18 "x 18" | 18 1/4 x 18 1/4" | 1 | 3 | 9 | 48 |
